Industrial IoT Enviroment Sensor
Model Number: EVS-201
Industial IoT Odour Gas Sensor with Temperature/Humidity Monitoring
Downlod Specification In PDF
System Feature
- Connection is from device connected to server.
- Once system power up, it will auto create a persistence connection to the server without user intervention.
- Server can be placed either at public cloud, private cloud or LAN.
- Device able to work behind firewall.
Network link with MQTT Broker Server
- Open Standard protocol and readily available either using paid version or free version of MQTT Broker.
- Messaging format based on JSON format.
- JSON messaging format is supported by various programming language and easily integrated to any existing system.
- Device support Secure WebSocket or Secure TCP connection to MQTT Broker.
Direct link with USB Connection
- The device also can be configured to use USB Connection without connecting to the network.
- Suitable for direct connection with PC/Host system locate beside the device.
- Just add an extra JSON layer of wrapper to wrap around the same JSON messaging standard used in the MQTT Broker Server communication.
- Thus provide an easy path for future system expansion, from localized system architecture to network-based system architecture.
Auto fetch real time clock from Internet Time Server.
- Auto connect with the Internet Time Server to fetch the Real time value (EPOC Time) when network is connected and internet link is available.
- Manually set time by server if internet link is not available.
- Auto readjust the time drift periodically.
- Append the EPOC time to all the message.
Easy setup and configuration
- System configures with Android Apps.
- Provide detail device properties, E.g., model number, version number, etc.
- Connectivity selection either using Wi-Fi, Ethernet or USB Link.
- Upload WPA Enterprise Server private/public key.
- Server IP/Domain Name Setup.
- DHCP/Fix IP.
- Internet Time Server Setting.
Device’s sensors with MEMS
- Build in with Micro-electromechanical systems sensors (MEMS) technology
- Highly accurate and fully digital output direct from the sensors.
- Sensors are calibrated and accuracy are guarantee by sensor manufacturer.
Other
- Build in with ventilation fan to suck in surround air to have better gas sensing sensitivities.
- Industry grade enclosure for better protection and durability.
Hardware Specification
Power and Enclosure Specification
| Item |
Description |
| Input Voltage |
DC 5V USB-C Connector |
| System Power Consumption |
15W Max |
| Operation Humidity |
20%-95%RH |
| Operation Temperature |
25°C to 45°C |
| Storage Humidity |
10-95%RH |
| Storage Temperature |
0°C to 85°C |
| Enclosure Dimension |
68mm (W) x 100mm (L) x 43mm (H) (Exclude sensor wire and mounting hook, 125mm(L) with mounting hook) |
| Enclosure Type |
Durable Industrial ABS and Acrylic Casing with build in ventilation fan |
Sensors Specification
Temperature and Humidity
| Item |
Description |
| Temperature and Humidity Sensor |
Model SHT-Cx By Sensirion |
| Temperature Accuracy |
±1°C |
| Relative Humidity Accuracy |
2.5%RH |
| Operating Range |
0~100%RH, -40~125°C |
Gas Sensor
| Item |
Description |
| NH3 and H2S Gas Sensor |
Electrochemical Gas Sensor fully calibrated by sensor manufacture |
| Resolution |
1ppm |
| Range |
NH3: 0~50PPM, H2S: 0~5000PPM |
| Operating Range |
15~90%RH, -20~50°C |
| Initial Start-up Setup Period |
Less than 3min |
| Response Period |
Less than 30 second |
| Recovery Period |
Less than 60 second |
Wi-Fi Specification
| Item |
Description |
| Frequency |
2.4Ghz~2.5Ghz |
| Supported Wi-Fi Protocol |
802.11 b/g/n |
| Antenna Type |
Internal |
| Security Protocol |
WPA/WPA2 personal, WPA/WPA2 Enterprise |
| Encryption Protocol |
WEP/TKIP/AES |
USB Type-C Port Specification
| Item |
Description |
| Supported Protocol |
USB Virtual Comm Port |
| Baudrate |
115200 Baud, 8bit, no-parity, 1 stop bit |
Backend Server Connectivity
| Item |
Description |
| Server Connection |
MQTT Broker with TCP, TCP-TLS, Web-Socket Connection |
| Server Port |
User Definable |
| Encryption/Security |
Public CA, Self-Signed Certificate |
| Messaging Format |
JSON |
| Other |
NTP auto RTC update |

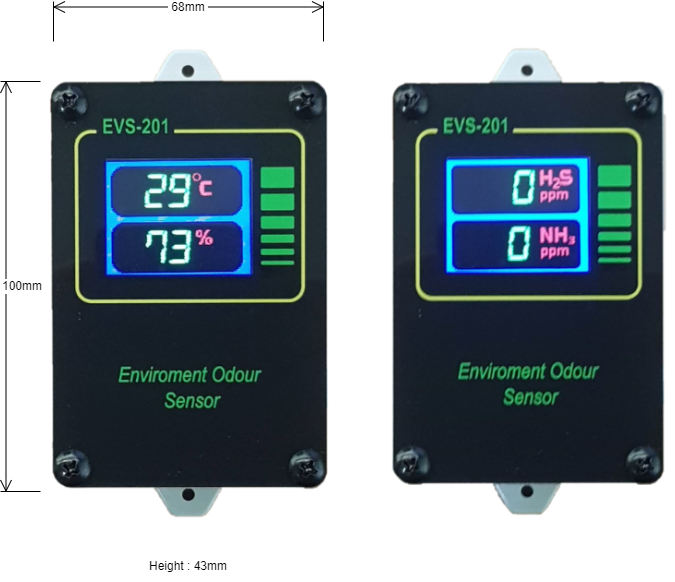

Device Outer Dimension
